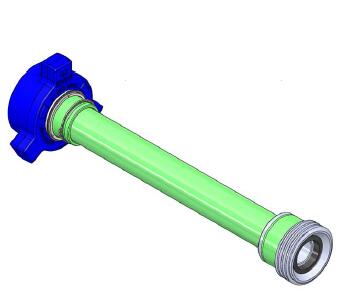

2" 1502 X 2FT NPST PUP DET

●NOM Valve offers NPST (non-pressure seal thread) pups in sizes 1”- 3” Fig. 602 & 1502.

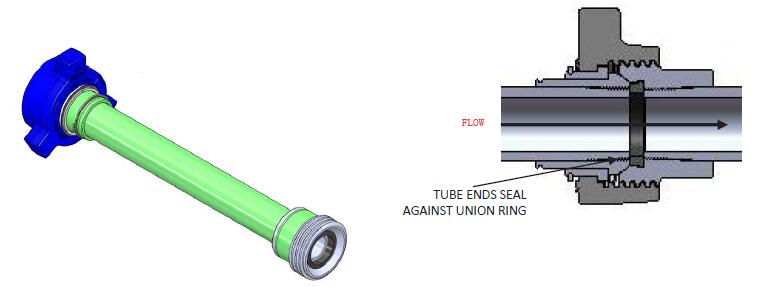

●The NPST connection offers a light-weight pup capable of 6,000 - 15,000 CWP with a connection that isolates the thread from the fluid’s flowpath. This connection is permanent (sealed with an epoxy thread compound) and is well suited to abrasive applications where a welded connection is not desirable.

●NOM Valve offers all NPST sizes with a detachable nut and non‐detachable as an option.

●NPST pups are offered up to 20 ft. in all line sizes.

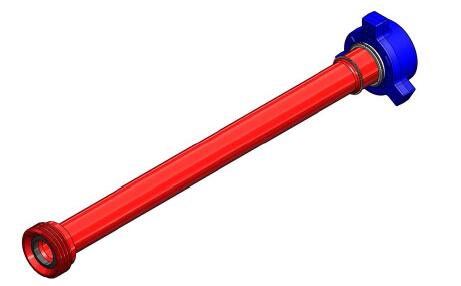

2” 1502 x 3FT M x F DET

●Integral pups are manufactured from seamless, forged one-piece construction and are offered in 2” & 3”sizes-Fig. 602 & 1502.

●Ideal for Sour (H2S) and abrasive service, these pups are long-wearing and a significant improvement over welded assemblies. No intrusive weld root means smoother flow and reduced washing.

●A retention ring prevents the nut from sliding down the pup and injuring the operator.

●Integral pups 2” Fig.602 are offered to 20 ft., 2” Fig.1502 to 12 ft., 3” Fig.602 & 1502 to 10 ft.
